Product Description:

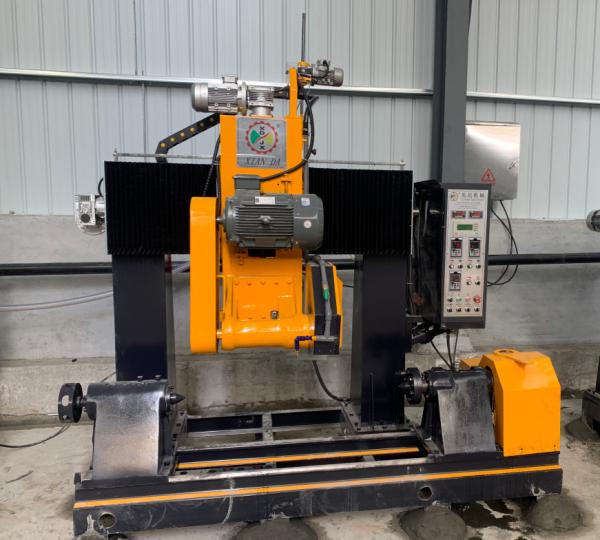

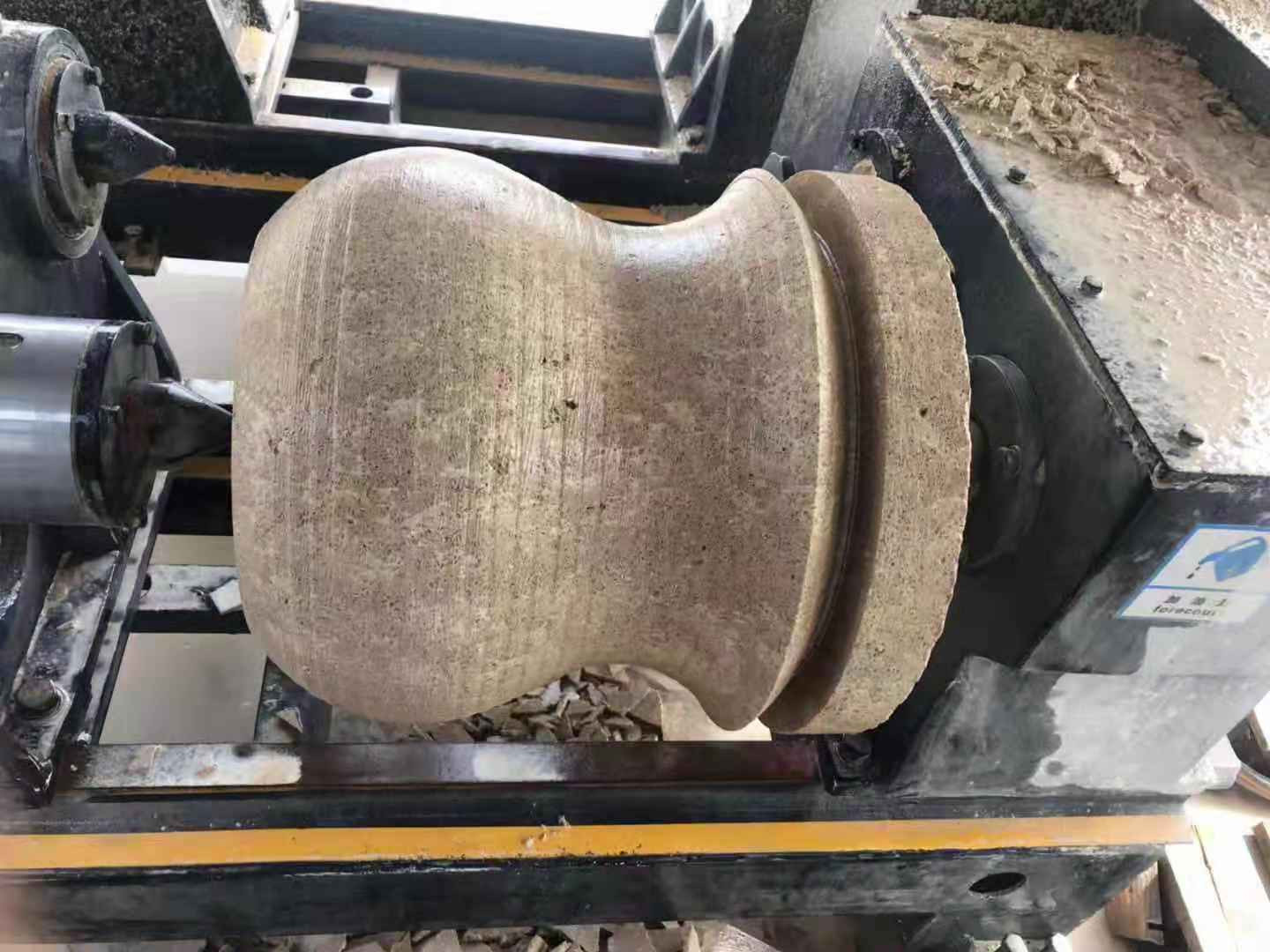

The machine adopts gantry-type integrated structure,microcomputer control and optical fiber measurement.This machinecan be used to cut any shape of vase,balls,column bases,column caps and other rotary stone materials.This machine perfectlysolved the shortcomings of manual polishing,like inconsistent manual production,high consumption and poor precision.Thismachine is fully automatic.After correct machine setting,one worker can operate multiple machines at same time.
Designed for industries demanding flawless spherical components, our machine combines cutting-edge technology with robust engineering to deliver unmatched accuracy, speed, and versatility.
- 360° Precision Rotation: Achieves uniform spherical geometry with ±0.01mm tolerance, ideal for high-precision applications.
- One-Touch Programming: CNC control system allows easy input of spherical dimensions, reducing setup time by 40% compared to manual machines.

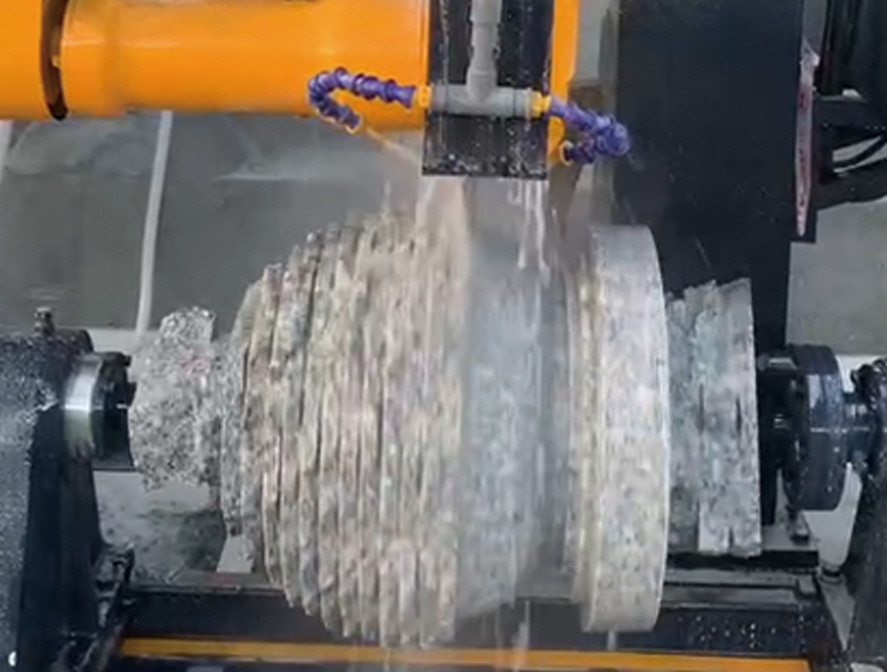

- Dual-Blade Cutting System: Rough cuts and fine profiles in a single pass, producing up to 4 pieces/12minutes(depending on size).
- Heavy-Duty Steel Frame: Supports high-load operations without vibration, ensuring stability during high-speed cutting.
- Quick-Change Blade Mechanism: Reduces maintenance downtime – blade replacement in under 5 minutes.
- IP54 Protection Rating: Dust and water-resistant design for harsh workshop environments.
| Parameter | Unit | BRC-600 |
| Blade diameter | mm | 400-600 |
| Max processing diameter | mm | 600/1pcs |
| Max processing length | mm | 1000 |
| Main motor | kw | 15/18(Optional) |
| Gross power | kw | 20/23.5(Optional) |
| Gross weight | kg | 3500 |
| Outline dimension | mm | 2900*1500*3200 |
| Water consumption | m³/h | 2 |
Perfect for producing spherical components in:
Stone Industry: Garden ornaments, architectural spheres, marble/granite decorative balls
Ready to optimize your spherical component production?
- Request a Demo: See the machine in action with your material.
- Download Spec Sheet: Detailed technical guide and safety information.
- Contact Us: Our engineers will recommend the best model for your needs.
