5 Axis Bridge Cutting Machine For Profiling

  • 1
  • 2
  • 3

Brand Name : Xianda Machinery

Certification : API, CCC, UL, SONCAP, GOST, ISO, CE, SGS;IAF

Place of Origin : Jinjiang, Fujian, China

MOQ : 1

Price : To Be Negotiable

Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram

Supply Ability : 1000 Sets/Year

Packaging Details : Plastic Package, Suitable for Sea Transportation.

Model Number : Create 450/600

Delivery Time : 30 days

Blade material : diamond

Type : Bridge cutting machine

Application : stones，marble，granite

Blade diameter range : 350-600mm

Lifting stroke : 500mm

Air speed : 15m/min

Contact Now

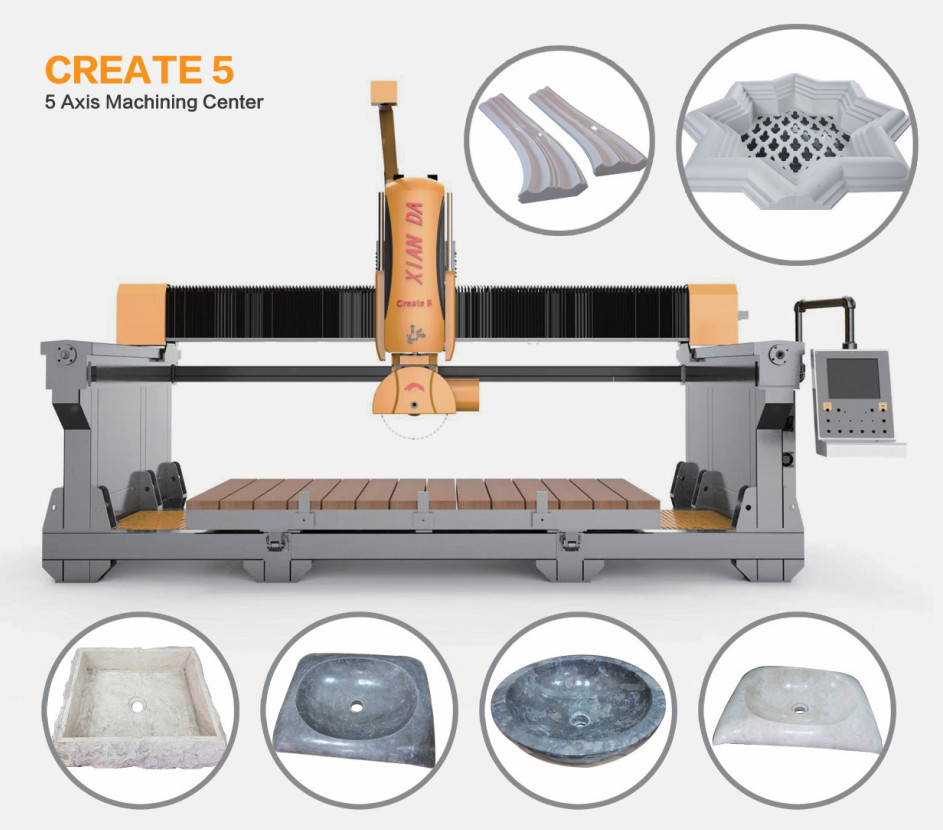

5 Axis Bridge Cutting Machine For Profiling

Product Description:

5 Axis Bridge cutina machine adoot 5 Axis linkage CNC Svstem Control, Bus-based absolute value servo (with memoryfunction for power off), high-precision linear quide rail, ball screw transmission, oil-immersed track structure, with multi-func-tion, high precision, strong stability and other advantages. its processing functions include: arbitrary-shaped lines, fan-shapedplates, wash basin and special-shaped edge profiling, etc. The equipment has multiple processing functions, wide application.small space, and simple operation. lt is a great equipment for stone processing.


5 Axis Bridge Cutting Machine For Profiling
Parameter Unit Create 450 Create 600
Blade diameter range mm 350-450 350-600
Max processing size mm 3200*2000*120 3400*2000*180
Lifting stroke mm 300 500
Worktable size mm 3200*2000 3400*2000
Table tilting degree ° 0-85° 0-85°
Head rotating degree ° 0-360° 0-360°
Air speed m/min 15 15
Repeated accuracy of positioning mm 0.1mm/1000 0.1mm/1000
Main motor kw 18.5(Permanent magnetic system synchronous motor) 22(Permanent magnetic system synchronous motor)
Gross power kw 26 30
Water consumption m³/h 3 3
Outline dimension mm 5600*3600*3500 5800*3650*3900
Head tilting degree ° 0-90° 0-90°
Gross weight kg 6000 7500

Prpducts picture:

5 Axis Bridge Cutting Machine For Profiling
5 Axis Bridge Cutting Machine For Profiling5 Axis Bridge Cutting Machine For Profiling5 Axis Bridge Cutting Machine For Profiling
